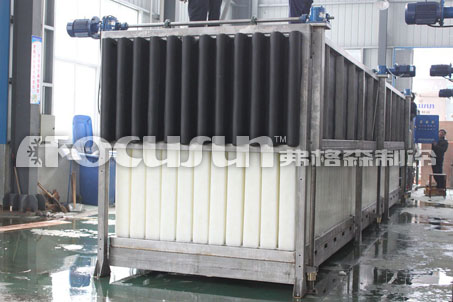

Block ice machine FIB-200D

Model: FIB-200D

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	380V/3P/50Hz
Refrigerant			R22 or R404A
Capacity		Kg/day	20000
Cooling way			Water cooling
Temperature	Ambient temperature	℃	35
Temperature	Waterinlet temperature	℃	20
Operating power	Total running power	Kw	85.55
	Installment power	Kw	105
	Cooling tower fan	Kw	2.2
	Cooling water pump	Kw	5.5
	Operating power of cold water pump	Kw	0.75
Compressor	Manufacturer		Bitzer
	Refrigeration capacity	Kw	155.7
	Operating power	Kw	77.1
	Compressor COP/EER	Kw/kw	2.3
	Horse power	Hp	40×3sets
Working time	Ice making time	h	7.5
Working time	Ice falling off time	h	0.5
Dimension	Weight of block ice	Kg/block	50
	Size of block ice	(L×W×H)(mm)	480×160×700
	Size of unit modular	(L×W×H)(mm)	2400×1600×1800
	Number of evaporator		4 PC
	Size of evaporator modular	(L×W×H)(mm)	4800×1000×2200
	Size of cooling tower	(O.D.×H)(mm)	Ф2650×2645
	Size of water feeding pipe of cooling tower		1"
	Size of cooling water pipes		4"
	Size of water feeding pipe		1-1/4"
Operating weight	Unit	Kg	2896
	Evaporator	Kg	2860
	Cooling tower	Kg	1300
Water supply pressure requirement		Bar	1

Direct Refrigeration Block Ice Machine
